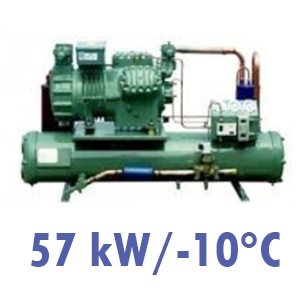

Bitzer Condensing Unit 57 kW / -10°C

Description

This Bitzer condensing unit features a 30 HP 6GE-30Y compressor, designed for refrigeration applications, with a cooling capacity of 57 kW at -10°C.

Power Supply: 400 V, 50 Hz

Max. Input: 40 A

Displacement: 127 m³/h.

Enhanced Condensation Capacity: 70 kW / ΔT 15, with four 500 mm diameter fans.

Equipped with a liquid separator, oil recovery system, differential pressure switch, oil pressure switch, and a 24 L liquid receiver.

Condition: New.

Warranty: 24 months.

We can provide installation (5,000 RON + VAT) and delivery services at an additional cost.

The installation price does not include necessary materials and accessories.

The condensing unit is made up of a chassis, compressor, condenser, electrical connection box, pressure switch, and liquid receiver, and it is installed outside the refrigerated space or application. This unit is a component of the refrigeration system and, together with the evaporator (air cooler, plate heat exchanger, etc.), expansion valve, filter, and control panel, it can effectively cool a space or application.
