Bitzer Condensing Unit 25 HP

Description

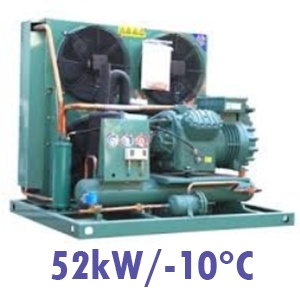

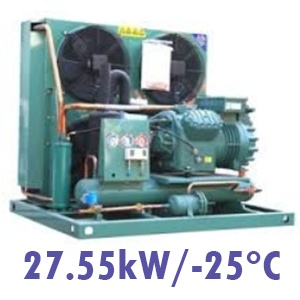

This condensing unit has a capacity of 25 HP, providing a cooling power of 52 kW at -10°C or 27.55 kW at -25°C. It is equipped with a semi-hermetic Bitzer compressor with four cylinders, a differential pressure switch, a 24-liter liquid receiver, and a 65 kW air-cooled condenser.

It is suitable for operation within an evaporation temperature range of -45°C to 0°C.

Upon request, it can be supplied with an additional fan for cylinder head precooling.

Power Supply: 400V, 50Hz

Input: 34 A.

Displacement: 75 m³/h.

This unit operates with refrigerants: R404A, R507, R449A, R134A, R513A, R448A, R452A, R407A, and R422D.

Condition: New.

Warranty: 24 months.

We can provide delivery and installation services at an additional cost of 4,950 RON.

The price does not include the installation of other necessary accessories and materials.

This unit is suitable for

• Refrigerated storage warehouses up to 650 m³
• Freezer rooms up to 350 m³.

The condensing unit is made up of a chassis, compressor, condenser, electrical connection box, pressure switch, and liquid receiver, and it is installed outside the refrigerated space or application. This unit is a component of the refrigeration system and can effectively cool a room or application only when combined with an evaporator (air cooler, plate heat exchanger, etc.), expansion valve, filter, and control panel.
