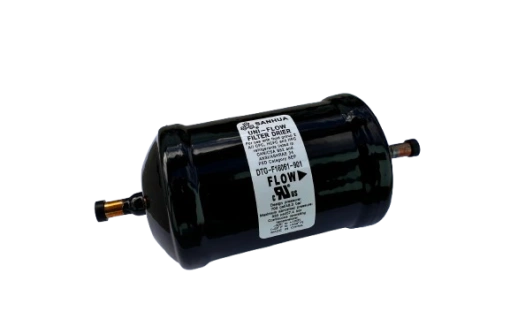

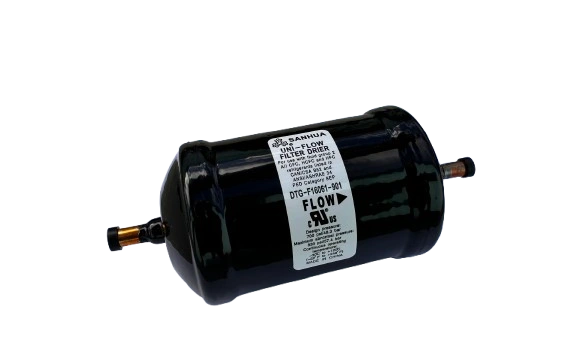

Anti-Acid Filter Drier 6 mm ODF | Sanhua DTGF 162S

Sanhua DTGF162S is a filter drier for refrigeration systems, designed to retain moisture and impurities from the refrigerant circuit.

Functions: absorbs moisture and acids, retains impurities and residues from the circuit.

Connection: 6 mm ODF, solder connection

Nominal volume: 16 in³ (262 cm³)

Flow direction: Unidirectional

Filtration rating: 20 μm

Filtration capacity: 262 cm³

Maximum pressure: 48.3 bar

Refrigerant temperature: −30°C to +120°C

Ambient temperature: −30°C to +55°C

Desiccant material: 80% 3Å molecular sieve and 20% activated alumina

Core type: Solid

Compatible refrigerants: R22, R134a, R404A, R407C, R410A, R507, and other compatible HCFC/HFC/HFO refrigerants, depending on the application.
